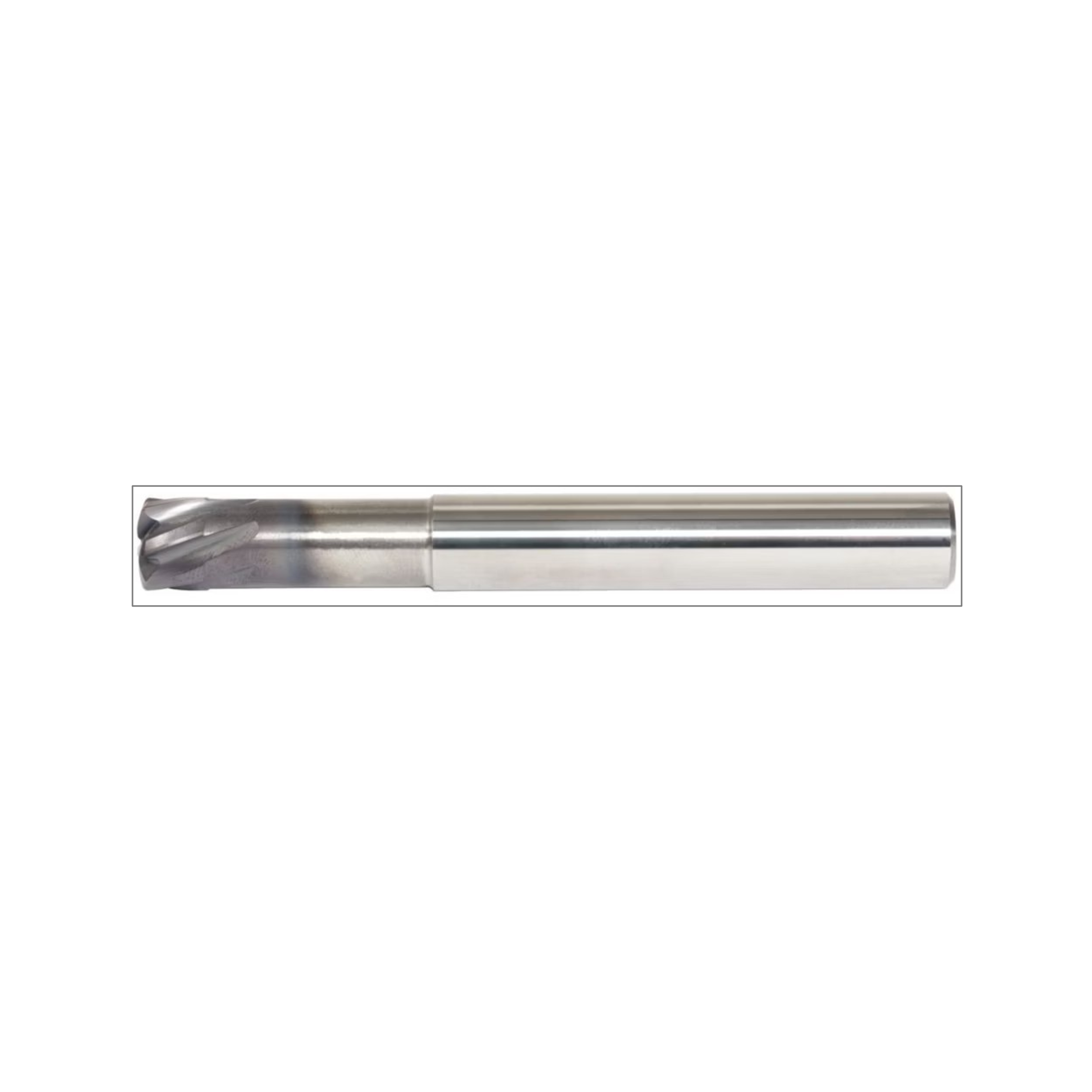

X-FEED Solid Endmill 8X8X6.0-24X76 C.016 3341348
Product price:
$147.17
4 items on stock
Product description:
| Material Number | 3341348 |
| ISO Catalog ID | 70N608003MT |
| Grade | ALTIN-MT1 |
| Adapter Style Machine Side | Straight-Cylindrical |

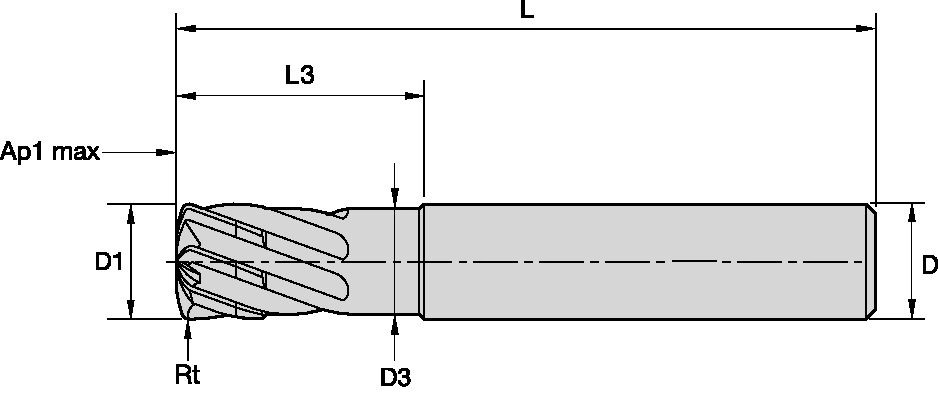

| [D1] Effective Cutting Diameter | 8 mm |
| [D] Adapter / Shank / Bore Diameter | 8 mm |
| [D3] Neck Diameter | 7.5 mm |

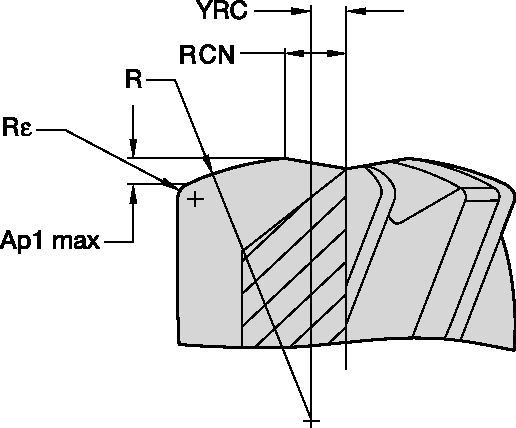

| [AP1MAX] 1st Maximum Cutting Depth | 0.42 mm |
| [L3] Usable Length | 24 mm |
| [L] Overall Length | 76 mm |
| [Re] Corner Radius | 0.5 mm |
| Theoretical Cor Rad Prog I [RT] | 0.83 mm |
| [Z] Number of Flutes | 6 |
