Vertex

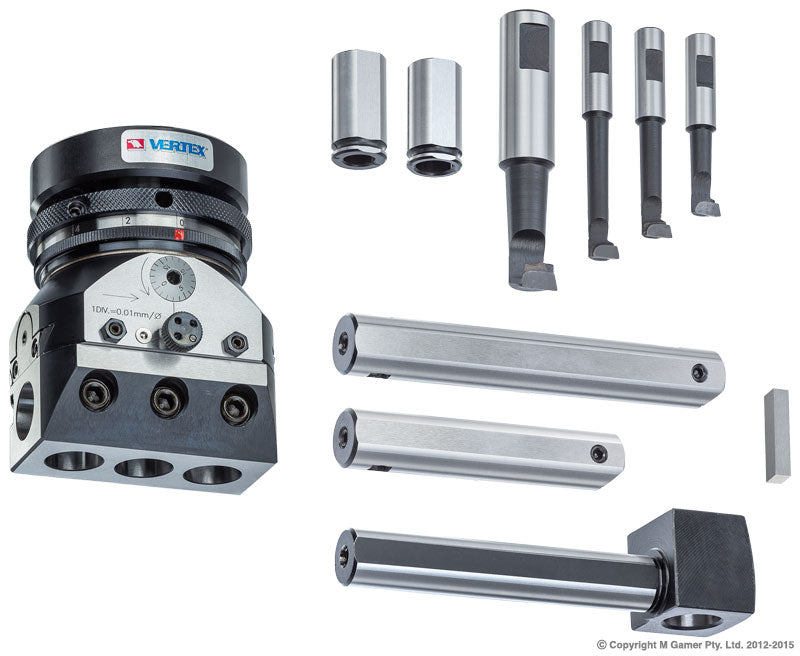

VBHU Boring and Facing Head
VBHU Boring and Facing Head
Regular price
$1,770.55 NZD
Regular price
Sale price
$1,770.55 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Head diameter: 78 mm
Boring bar hole: 18 mm
Distance between holes: 23 mm
Cross hole diameter: 18 mm
Max offset: 15 mm
Boring range: 5-250 mm
Dial graduation: 0.01 mm (off diameter)
Head diameter: 78 mm
Boring bar hole: 18 mm
Distance between holes: 23 mm
Cross hole diameter: 18 mm
Max offset: 15 mm
Boring range: 5-250 mm
Dial graduation: 0.01 mm (off diameter)
FEATURES
- Boring and facing head kit (arbor extra)
- Includes extension shanks, sleeves and brazed tooling
- A precision tool tool for complex milling applications
- Sturdy mount with 6 cap screws
- Applications: Vertical boring, outside turning, internal or external grooving, horizontal facing (both top and bottom faces)
