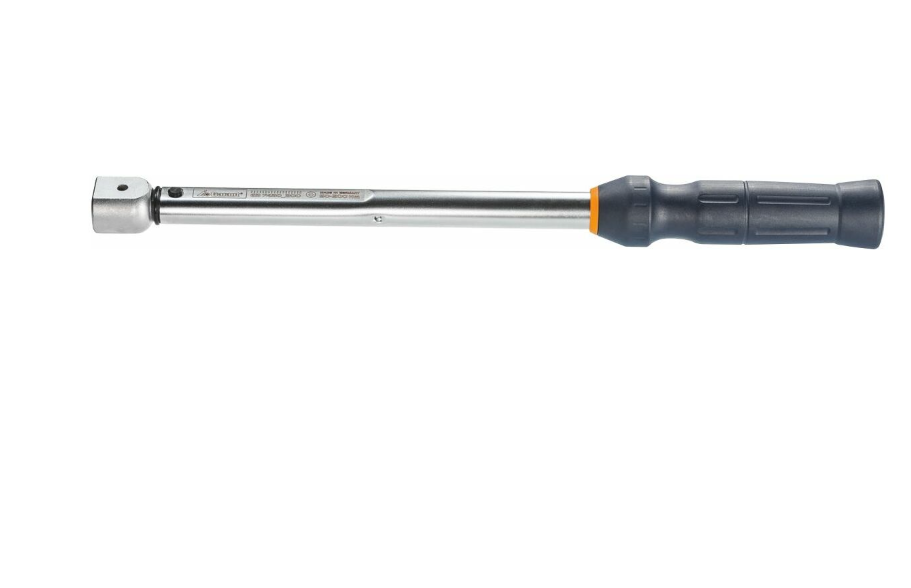

Torque wrench base unit without scale without plug-in head, maximum torque: 50N·m 657450 50
Torque wrench base unit without scale without plug-in head, maximum torque: 50N·m 657450 50
Regular price
$473.73 NZD
Regular price
Sale price
$473.73 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Data
| maximum torque | 50 Nm | |
| Direction of tightening | For right and left-hand tightening | |
| Torque measuring accuracy | ±2 % | |
| Exchangeable tool | Plug-in head | |

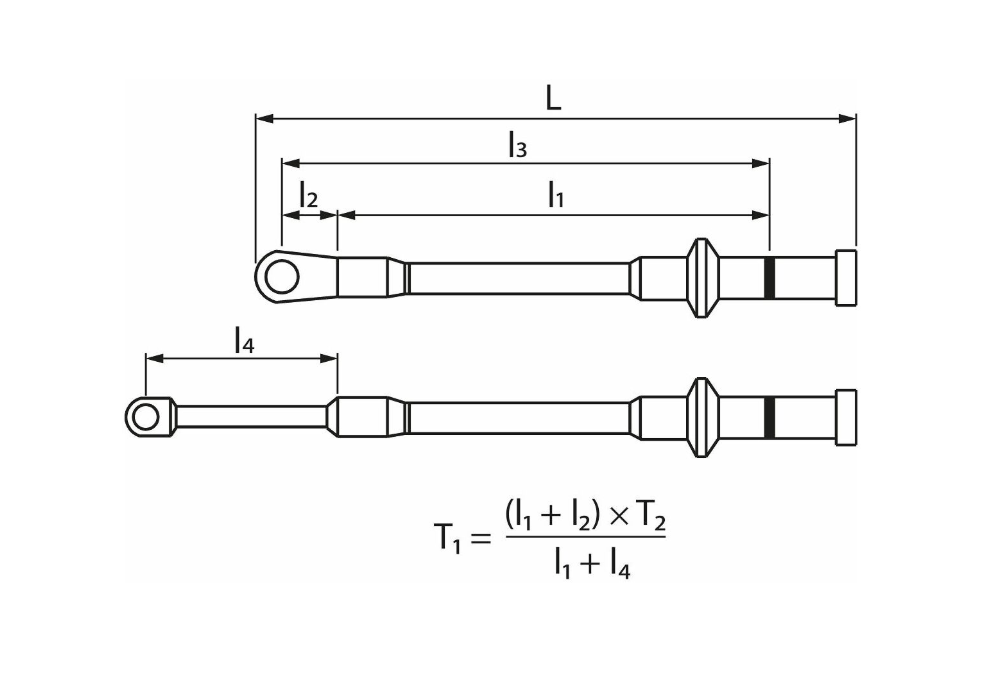

| Overall length L | 247 mm | |
| Torque range | 10 Nm - 50 Nm | |
| Weight | 290 g | |
| Adjusted reference dimension on the torque wrench [l2] | 30 mm | |
| Socket for plug-in head | 9×12 mm | |
| Release signalling | akustisk; haptisk | |
| Trigger principle | mechanical short-travel release | |
| Connection format | for plug-in heads (rectangular socket) | |
| Measurement technology | mechanical | |
| Data can be recorded | no | |
| Setting the trigger value | without setting scale (requires torque analyser) | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | preset | |
| Standard | DIN EN ISO 6789 | |
| Lever length without plug-in head [l1] | 195.5 mm | |
| Lever length including factory calibration reference dimension [l3] | 225.5 mm | |
| Type of product | Torque Wrench |
