Tesa

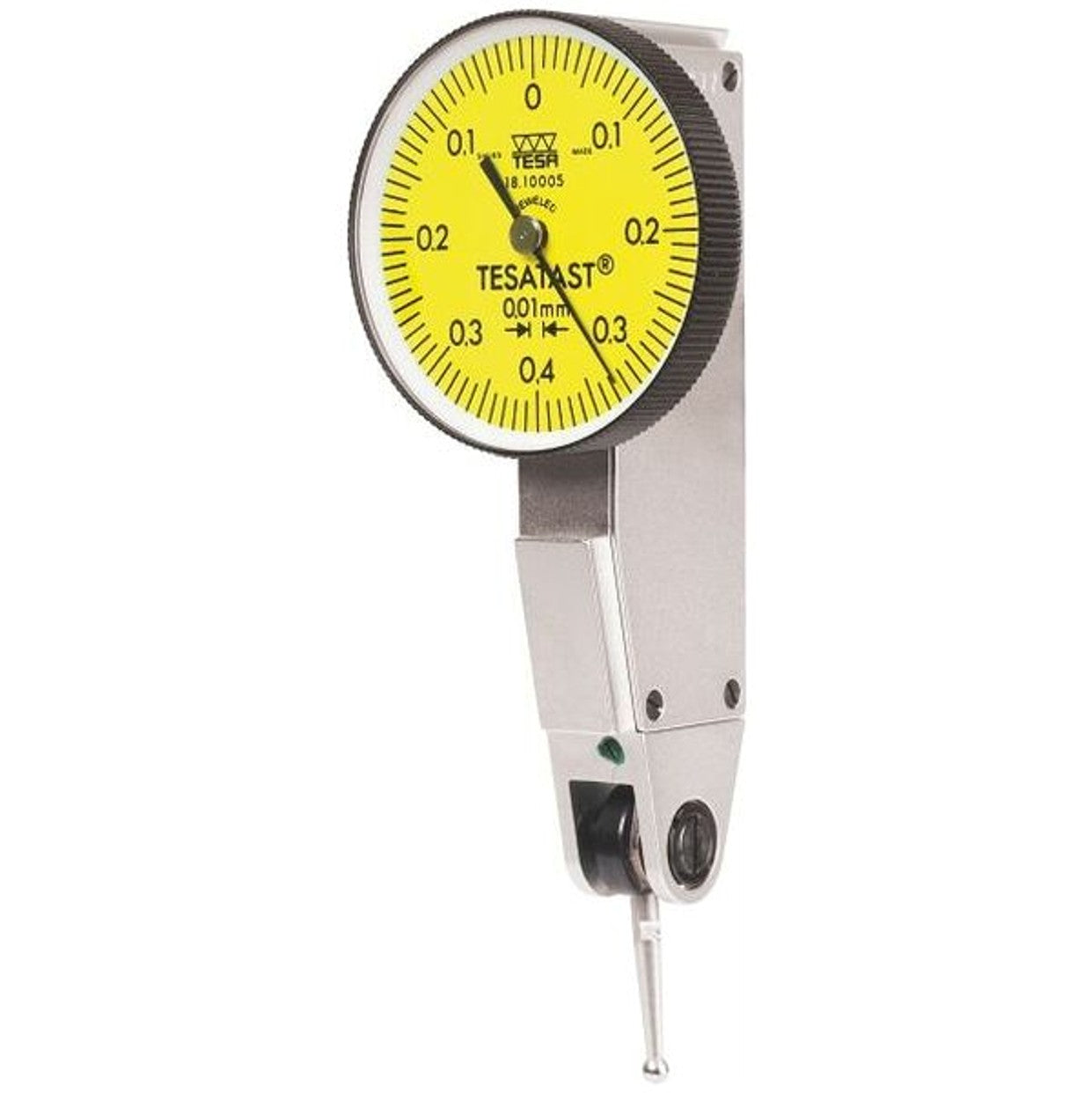

Tesatast lever dial indicator contact point length 12.5 mm, Measuring range per direction / Body ⌀: 0,4/29mm 436205 0,4/29
Tesatast lever dial indicator contact point length 12.5 mm, Measuring range per direction / Body ⌀: 0,4/29mm 436205 0,4/29
Regular price
$566.88 NZD
Regular price
Sale price
$566.88 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Data
| Standard | DIN 2270 | |
| Measuring range per direction | 0.4 mm | |
| Scale divisions | 0.01 mm | |
| Measurement ball ⌀ | 2 mm | |
| Pivot range | 2×120 degrees | |
| Contact point length | 11.8 mm | |
| Gauging force | 0.15 N | |
| Clamping shank ⌀ h6 | 8 mm | |
| Measurement technology | analogue | |
| Body ⌀ | 29 mm | |
| Packaging | sturdy box | |
| Type of product | Lever dial indicator |
