kennametal

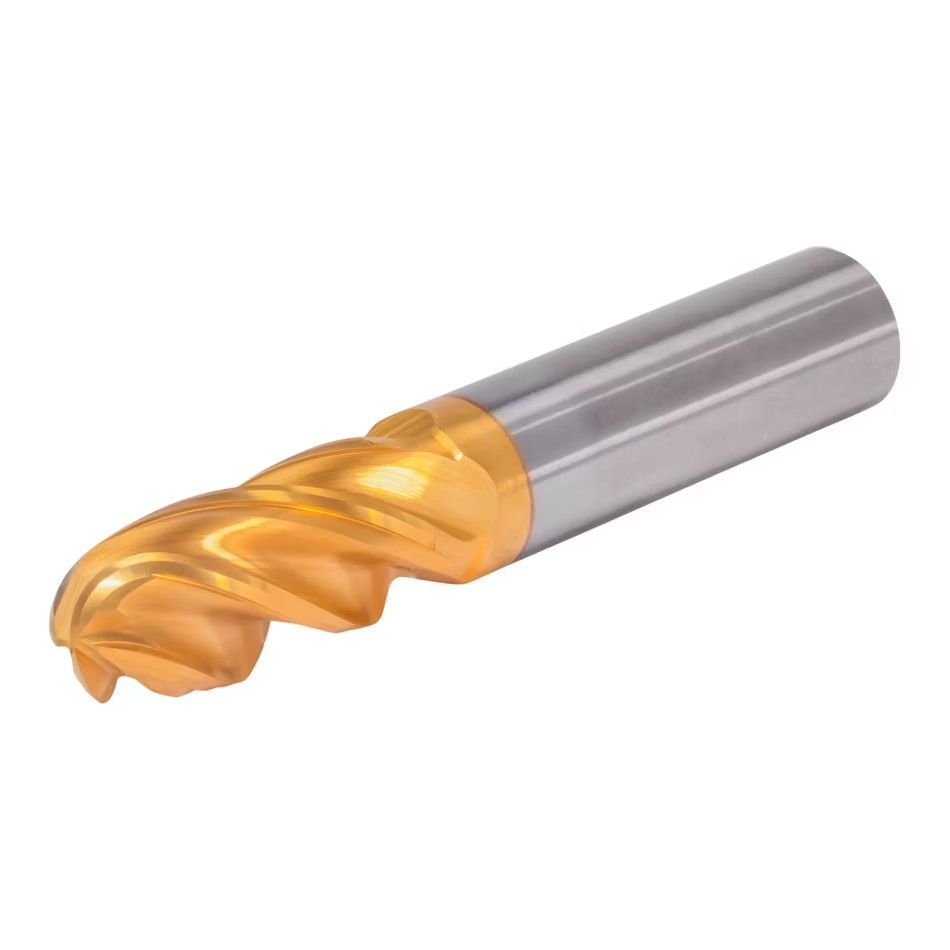

ENDMILL GOMILL PRO 4FL 6, 8, 10 & 12mm BALL - BOXED KIT
ENDMILL GOMILL PRO 4FL 6, 8, 10 & 12mm BALL - BOXED KIT
Regular price
$249.00 NZD
Regular price
Sale price
$249.00 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Solid Carbide End Mill for Roughing and Finishing of Multiple Materials
KENNAMETALS 4 Flute GOmill PRO Solid Carbide End Milld are perfectly suited to go into small to Medium sized shops.
| ENDMILL GOMILL PRO 4FL 6x6x13x57 BN |
| ENDMILL GOMILL PRO 4FL 8x8x19x63 BN |
| ENDMILL GOMILL PRO 4FL 10x10x22x72 BN |
| ENDMILL GOMILL PRO 4FL 12x12x26x83 BN |
| Material Number | 7231266 |
| ISO Catalog ID | GOPR4BN0600R013HAM |
| Grade | KCU20 |
| Adapter Style Machine Side | Straight-Cylindrical |

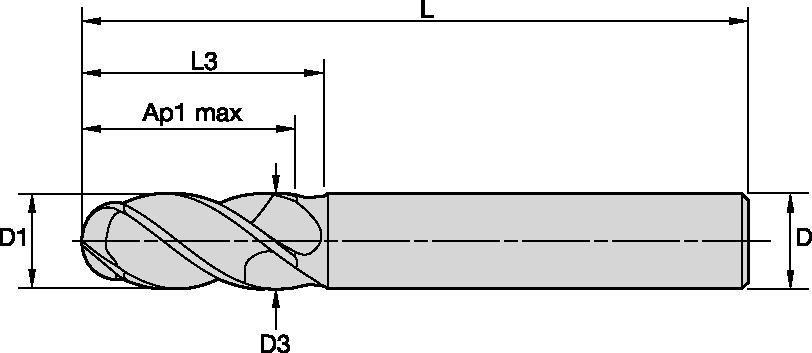

| [D1] Effective Cutting Diameter | 6 mm |
| [D3] Neck Diameter | 5.64 mm |
| [D] Adapter / Shank / Bore Diameter | 6 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 13 mm |
| [L3] Usable Length | 21 mm |
| [L] Overall Length | 57 mm |
| [R] Profile or Ball Nose Radii | 3 mm |
| [Z] Number of Flutes | 4 |
