kennametal
ENDMILL GOMILL PRO 4FL 4, 6, 8, 10 & 12mm CHAM .15-.2 BOXED KIT
ENDMILL GOMILL PRO 4FL 4, 6, 8, 10 & 12mm CHAM .15-.2 BOXED KIT
Regular price
$249.00 NZD
Regular price
Sale price
$249.00 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

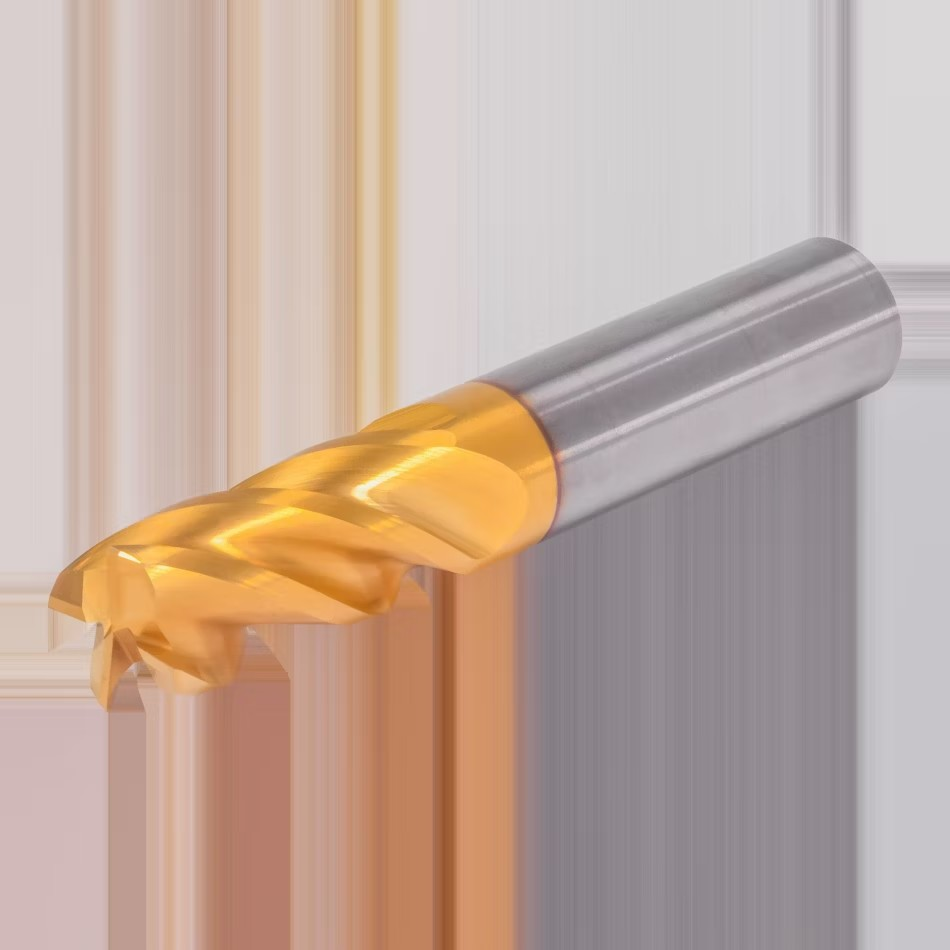

Solid Carbide End Mill for Roughing and Finishing of Multiple Materials
KENNAMETALS 4 Flute GOmill PRO Solid Carbide End Milld are perfectly suited to go into small to Medium sized shops.
| ENDMILL GOMILL PRO 4FL 4x6x11x57 CH0.15 |
| ENDMILL GOMILL PRO 4FL 6x6x13x57 CH0.15 |
| ENDMILL GOMILL PRO 4FL 8x8x19x63 CH0.2 |
| ENDMILL GOMILL PRO 4FL 10x10x22x72 CH0.2 |
| ENDMILL GOMILL PRO 4FL 12x12x26x83 CH0.2 |
| Material Number | 7231599 |
| ISO Catalog ID | GOPR4CH0400R011HAM |
| Grade | KCU20 |
| Adapter Style Machine Side | Straight-Cylindrical |

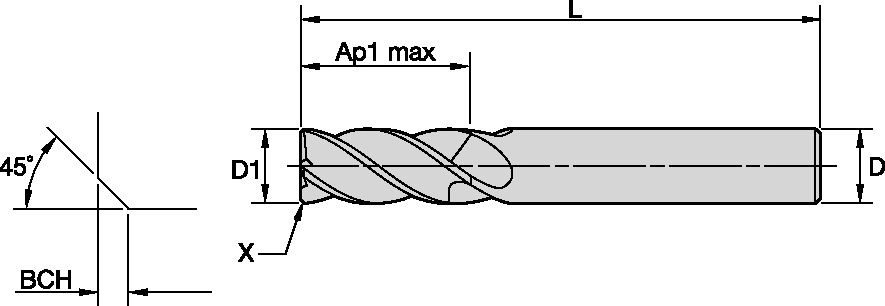

| [D1] Effective Cutting Diameter | 4 mm |
| [D] Adapter / Shank / Bore Diameter | 6 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 11 mm |
| [L3] Usable Length | 13 mm |
| [L] Overall Length | 57 mm |
| [BCH] Corner Chamfer Width | 0.15 mm |
| [Z] Number of Flutes | 4 |
