Widia

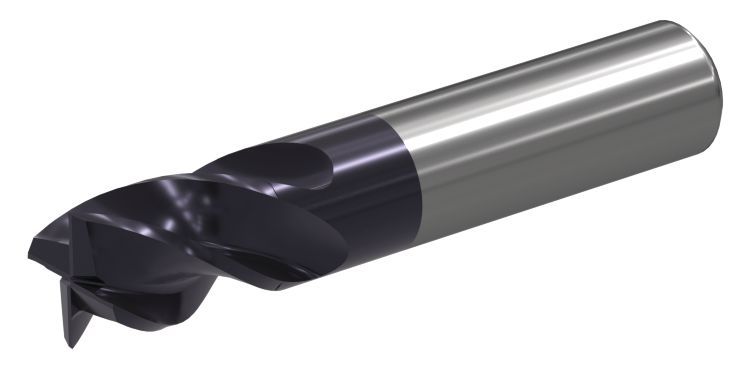

END MILL W4N1 8x8x19x63 R2,0 6945643
Product price:
$37.34
7 items on stock
Product description:
| Material Number | 6945643 |
| ISO Catalog ID | W4N1M08004RKT |
| Grade | WU20PE |
| Adapter Style Machine Side | Straight-Cylindrical |

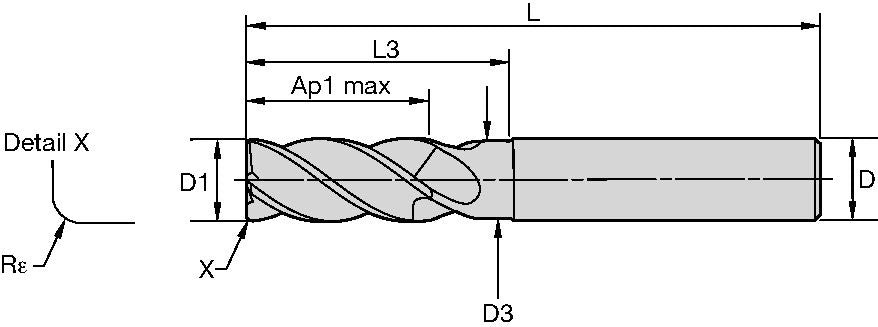

| [D1] Effective Cutting Diameter | 8 mm |
| [D] Adapter / Shank / Bore Diameter | 8 mm |
| [D3] Neck Diameter | 7.52 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 19 mm |
| [L] Overall Length | 63 mm |
| [L3] Usable Length | 27 mm |
| [Re] Corner Radius | 2 mm |
| [Z] Number of Flutes | 4 |
