kennametal

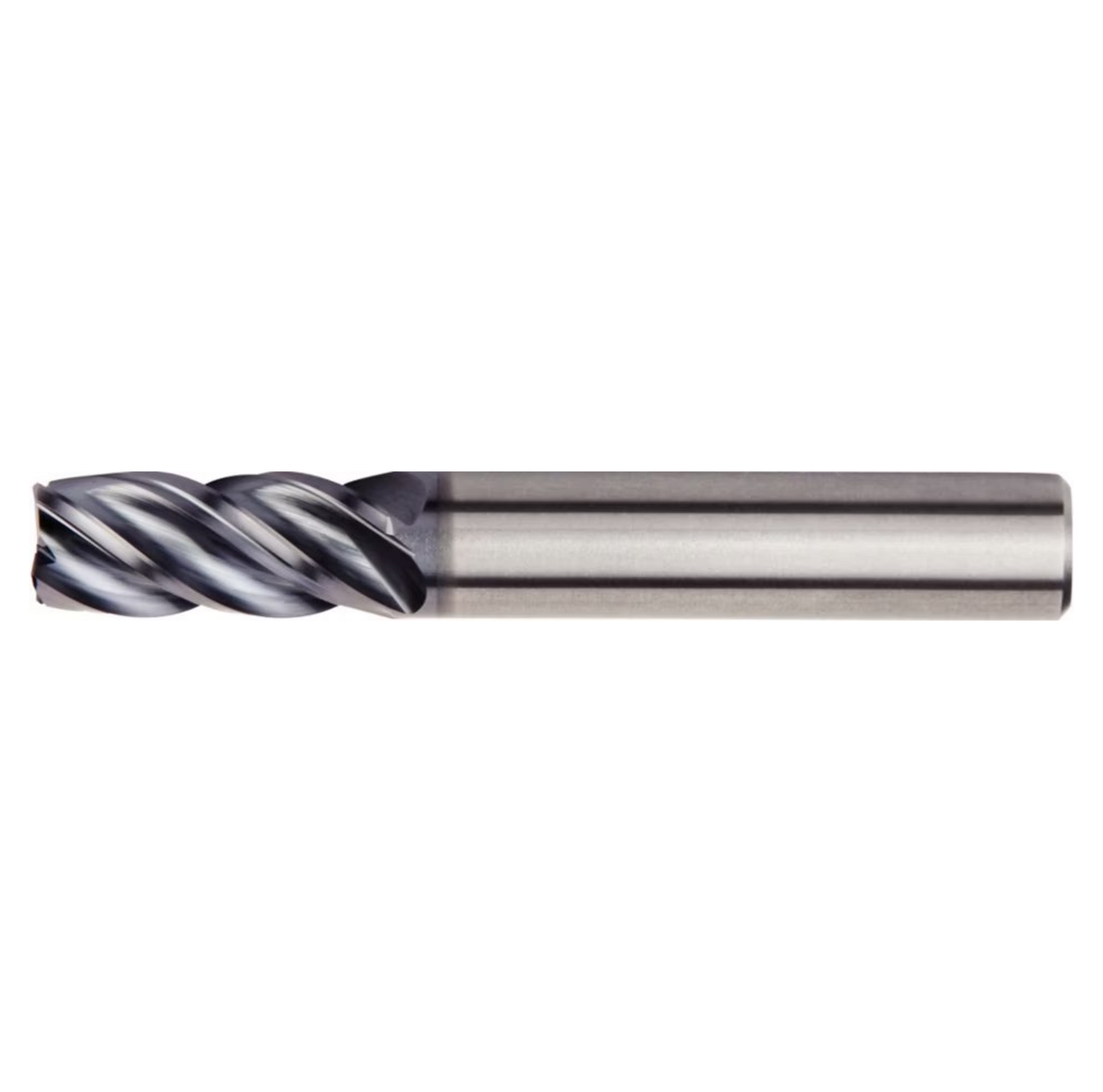

8x8x16x16x63 C.4 HARVI™ I Solid Carbide End Mill 4046269

8x8x16x16x63 C.4 HARVI™ I Solid Carbide End Mill 4046269

$48.57 NZD
$48.57 NZD
Sale Sold out
Shipping calculated at checkout.
Material Number 4046269
ISO Catalog ID F4AS0800ADL38
Grade KCPM15
Adapter Style Machine Side Straight-Cylindrical

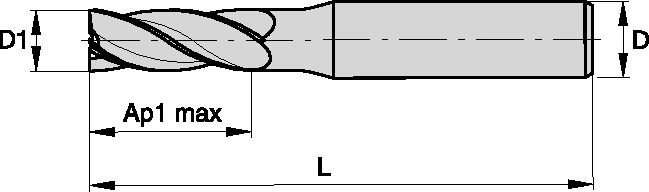

[D1] Effective Cutting Diameter 8 mm
[D] Adapter / Shank / Bore Diameter 8 mm
[AP1MAX] 1st Maximum Cutting Depth 16 mm
[L3] Usable Length 16 mm
[L] Overall Length 63 mm
[BCH] Corner Chamfer Width 0.4 mm
[Z] Number of Flutes 4
