Accud

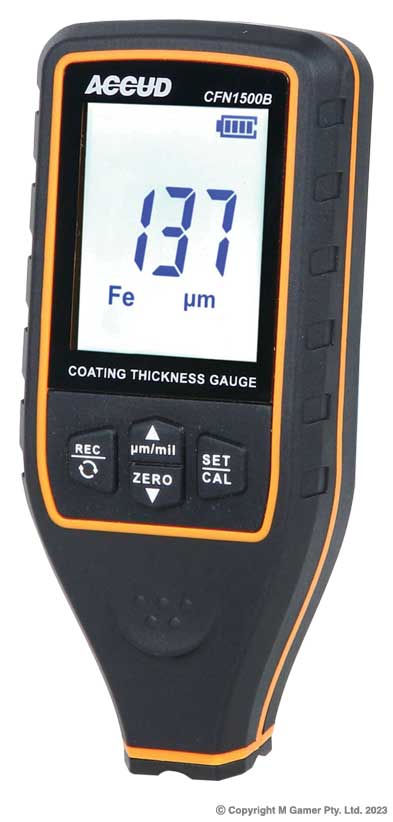

1500um Coating Thickness Gage, Fn Type AC-CFN1500B
1500um Coating Thickness Gage, Fn Type AC-CFN1500B
Regular price
$859.24 NZD
Regular price
Sale price
$859.24 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Range: 0-1500µm
Resolution: 0.1µm (0-99.9µm) / 1µm (100-1500µm)
Accuracy: 2µm (0-100µm / 3%(100-1500µm)
Memory: 30 sets
Power supply: AAA batteries
Dimensions: 120×52×26mm
Weight: 170g
Min. measuring area: 25×25mm
Min. curvature: convexity: 5mm; concave: 30mm
Min substrate thickness: magnetic material: 0.2mm; non magnetic material: 0.05mm
Range: 0-1500µm
Resolution: 0.1µm (0-99.9µm) / 1µm (100-1500µm)
Accuracy: 2µm (0-100µm / 3%(100-1500µm)
Memory: 30 sets
Power supply: AAA batteries
Dimensions: 120×52×26mm
Weight: 170g
Min. measuring area: 25×25mm
Min. curvature: convexity: 5mm; concave: 30mm
Min substrate thickness: magnetic material: 0.2mm; non magnetic material: 0.05mm
FEATURES
- Integrated Ferrous and Non Ferrous probe
- Ferrous probe is used to measure the thickness of non-magnetic coatings (zinc, copper, enamel, plastic and so on) on magnetic subtracts (iron, steel)
- Non Ferrous probe is used to measure the thickness of non-conductive coatings (varnish ,enamel, plastic and so on) on conductive subtracts (zinc, copper, aluminum)
- V-type probe for cylindrical work pieces
- Um/mil unit conversion
- Automatic power on/ off
- Back light
