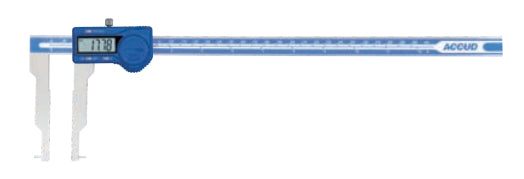

24-340mm Digital Caliper with Interchangeable Points

Resolution: 0.01 mm/0.0005"
Accuracy: ±0.04 mm

Short Spherical/Flat Points
Internal Range: 24-324 mm/1-12.7"
External Range: 0-288 mm/0-11.3"
Application: spherical points for grooves inside hole (small hole) flat points for external grooves

Long Spherical/Flat Points
Internal Range: 40-340 mm/1.5-13.3"
External Range: 0-272 mm/0-10.7"
Application: spherical points for grooves inside hole (large hole) flat points for external grooves

Short Spherical/Blade Points
Internal Range: 24-324 mm/1-12.7"
External Range: 0-288 mm/0-11.3"
Application: for narrow grooves (small hole)

Long Spherical/Blade Points
Internal Range: 40-340 mm/1.5-13.3"
External Range: 0-272 mm/0-10.7"
Application: for narrow grooves (large hole)
