kennametal

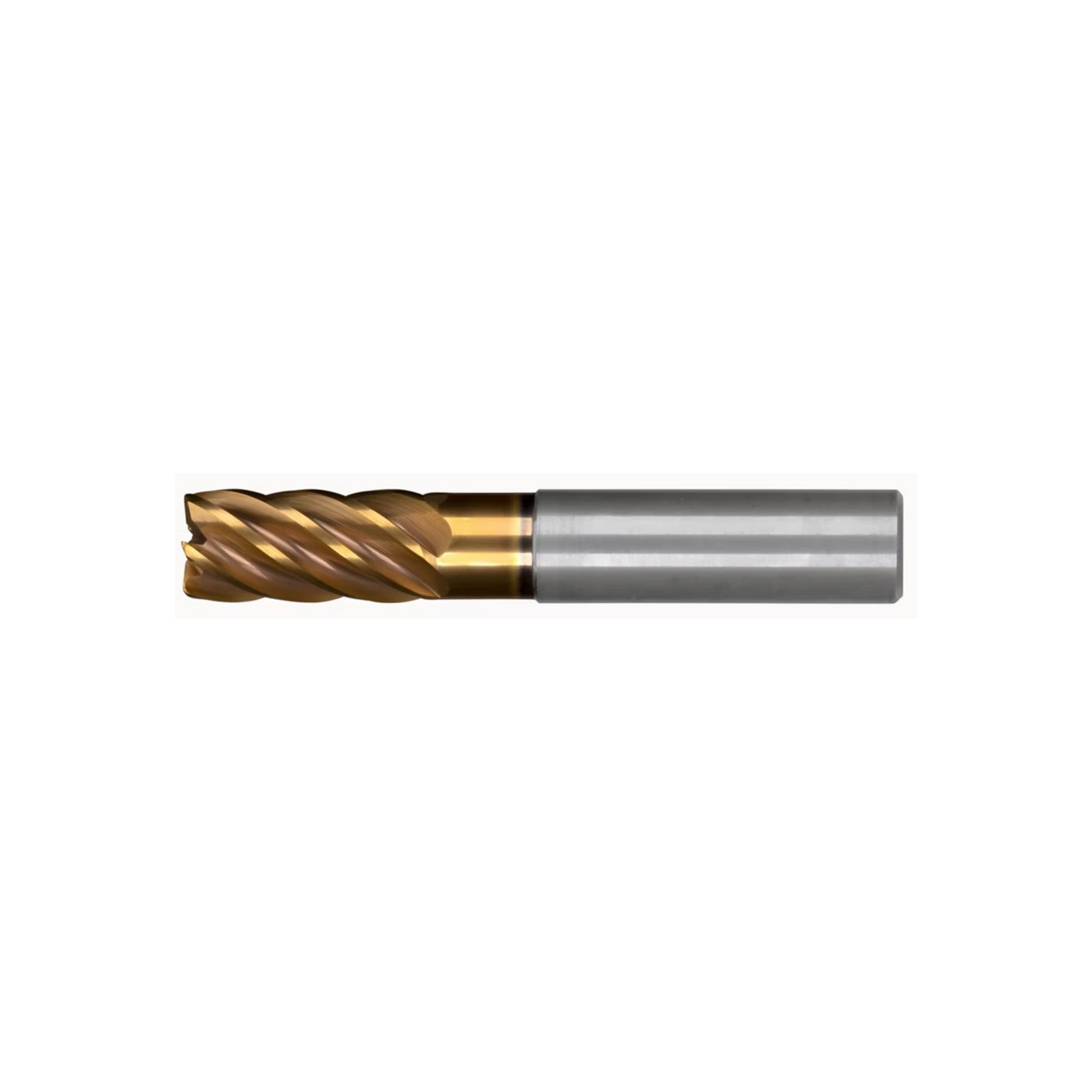

12x12x26x83 HARVI™ III Radiused 6 Flutes KCSM15 5350328
12x12x26x83 HARVI™ III Radiused 6 Flutes KCSM15 5350328
Regular price
$475.20 NZD
Regular price
Sale price
$475.20 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

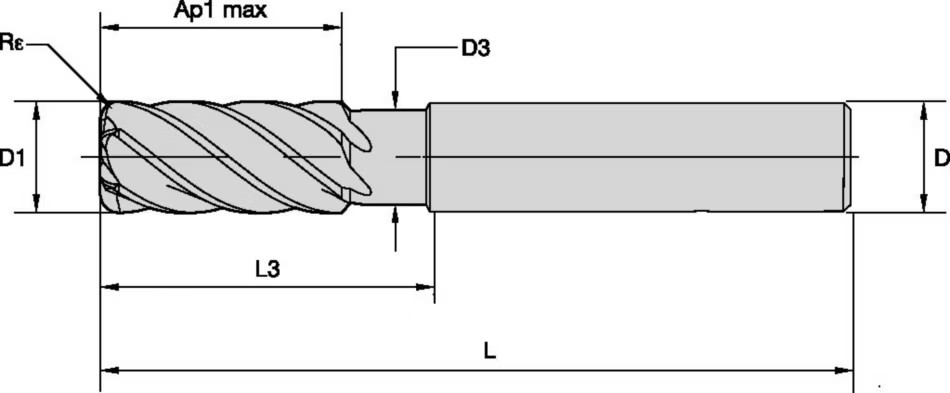

| Material Number | 5350328 |
| ISO Catalog ID | UJDE1200A6AQG |
| Grade | KCSM15 |
| Adapter Style Machine Side | Straight-Cylindrical |
| [D1] Effective Cutting Diameter | 12 mm |
| [D] Adapter / Shank / Bore Diameter | 12 mm |
| [D3] Neck Diameter | 11.28 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 26 mm |
| [L3] Usable Length | 36.36 mm |
| [L] Overall Length | 83 mm |
| [Re] Corner Radius | 1 mm |
| [Z] Number of Flutes | 6 |
